Removing and installing electronic ignition/starter switch (EZS) - AR46.10-P-0810A

MODEL 210

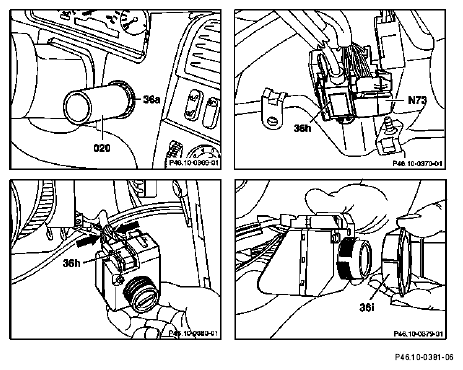

Fig 1: Identifying Electronic Ignition/Starter Switch (EZS)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove cover below instrument panel		AR68.10-P-1500F
2	Unscrew escutcheon (36a) from instrument panel using claw-type wrench (020)		Figure
3	Remove electronic ignition/starter switch (N73)	Installation :  Shift lock (36h) points downwards
4	Remove escutcheon (36i)	Installation  : Observe guiding groove
5	Remove shift lock (36h), by pressing the retaining clips (arrows) together and drawing the shift lock forwards out of the retaining lugs
6	Disconnect electrical connectors
7	Install in reverse order

Fig 2: Identifying Claw-Type Wrench For Escutcheon On Ignition/Starter Switch (210 589 00 07 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
