TELE AID control module connector assignment - AD82.95-P-2000-02A

Model 140 with CODE (348) TELE AID emergency call system with CODE (930) taxi emergency call

Model 210 up to 31.5.98 with CODE (348) TELE AID emergency call system with CODE (930) taxi emergency call

Connector assignments

Fig 1: TELE AID Control Module Connector Assignment - Connector Assignments

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

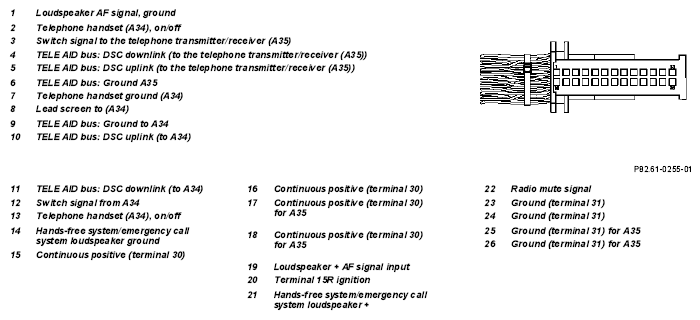

Connector 1 at the TELE AID control module (A35/8)

Fig 2: TELE AID Control Module Connector Assignment - Connector 1 At TELE AID Control Module (A35/8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connector 2 at TELE AID control module (A35/8)

Fig 3: TELE AID Control Module Connector Assignment - Connector 2 At Tele Aid Control Module (A35/8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
