Right low beam, testing electrical system xenon headlamp (XENON) - AD82.10-P-6001-02A
Right low beam, testing electrical system xenon headlamp (XENON) - AD82.10-P-6001-02A
Models 208, 210, left-hand steering

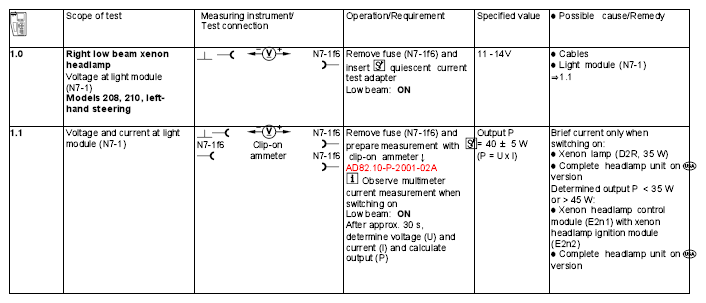

Fig 1: Right Low Beam, Testing Electrical System Xenon Headlamp (Xenon)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
