Left low beam, testing electrical system xenon headlamp (XENON) - AD82.10-P-6001-01A

Models 208, 210 Left-hand steering/right hand steering

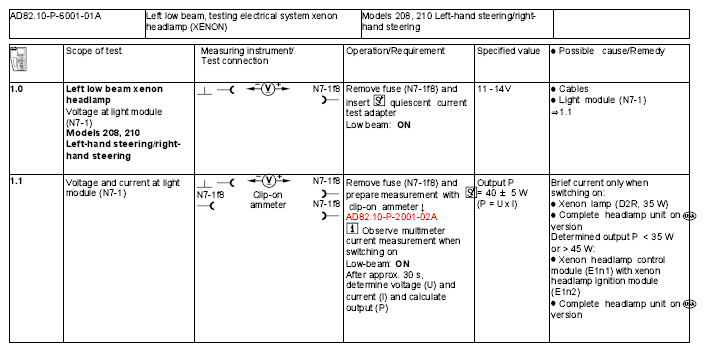

Fig 1: Left Low Beam, Testing Electrical System Xenon Headlamp (Xenon)
G04634703Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
