Coupling assignment, navigation processor, APS - AD82.61-P-2000-02A

Model 140 from 1.12.96 to 31.12.97, 210 from 1.6.96 to 31.12.97 with code 351

Navigation processor (APS) (A2/30)

Fig 1: Identifying Coupling Assignment, Navigation Processor, APS
G04634776Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Coupling B

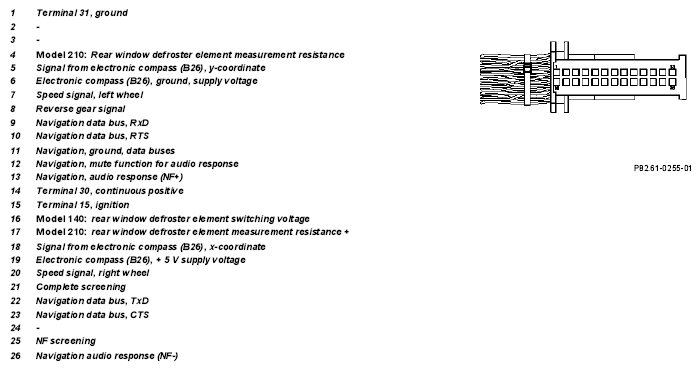

Fig 2: Identifying Coupling Assignment - Coupling B
G04634777Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
