Amplifier control module, testing electrical system, LS system - AD82.62-P-6001-01A

Model 129, 170, 202, 208, 210 with sound

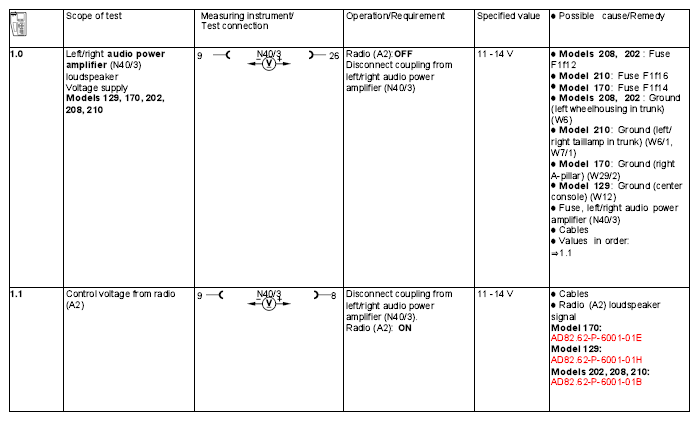

Fig 1: Amplifier Control Module, Testing Electrical System, LS System
G04634800Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
