Removing and installing trim panel at D-pillar - AR68.30-P-4495F

MODEL 210.2

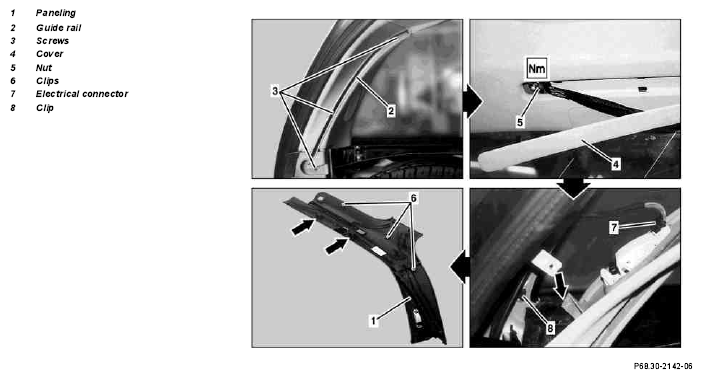

Fig 1: Identifying Trim Panel D-Pillar Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1.1	Open spare wheel cover and remove	When removing left trim panel (1)
1.2	Open right stowage compartment cover and remove	When removing right trim panel (1)
2	Remove rear load anchor
3	Remove guide rail (2) for retractable cover
4.1	Pull cover (4) off of paneling (1) and unscrew nut (5)	Vehicles with window airbag (code 290)
			*BA91.60-P-1005-01A
5	Carefully unclip paneling (1) with long wedge and remove	Position long wedge directly at clips (6) Installation:  Ensure that the lug (arrow) reaches correctly into the clip (8). Check clips (6) and (8) on window cutout, replace if necessary.
6	Disconnect electrical connector (7) from interior lamp
7	Install in opposite order	Installation:  Ensure that the lugs (arrows) reach correctly into the window cutout clips.

Airbag

Number	Designation		Model 210
BA91.60-P-1005-01A	Nut for window airbag on roof frame	Nm	5
