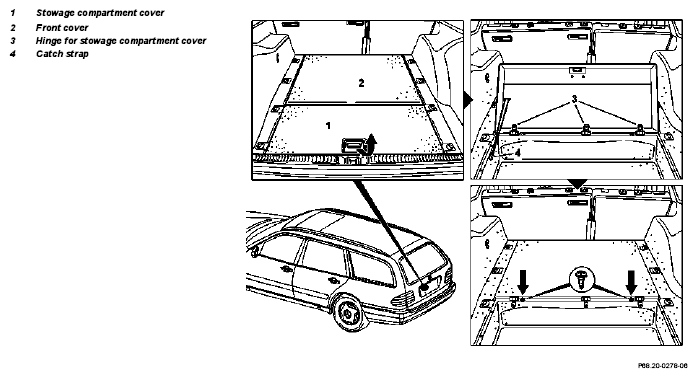

Removal, installation |
|
|
| 1 |
Swing up stowage compartment cover |
|
|
| 2 |
Unscrew catch strap (4) |
|
|
| 3 |
Unscrew hinges for stowage compartment cover (3) |
|
|
| 4 |
Remove stowage compartment cover (1) |
|
|
| 5 |
Unscrew screws (arrows) for front cover (2) |
|
|
| 6 |
Pull front cover (2) toward rear |
|
|
| 6 |
Reinstall in opposite order |
|
|
