Removing and installing headliner - AR68.30-P-4300FB

MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

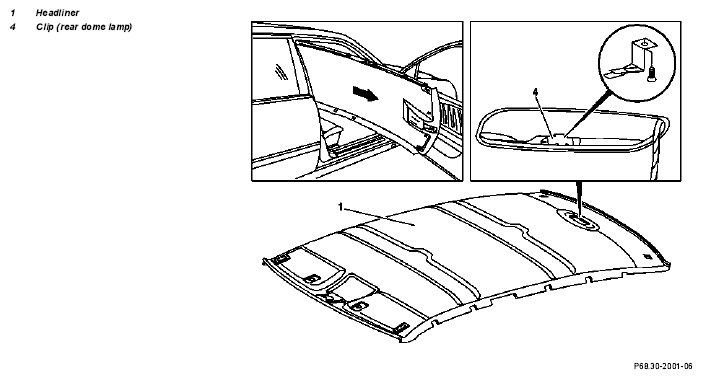

Fig 1: Identifying Headliner Components (Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove interior rearview mirror
2	Remove front dome lamp		AR82.20-P-0110F
3	Remove sun visors
4	Remove rear dome lamp
5	Remove edge guard on door cutout
6	Remove paneling on A-pillar		AR68.30-P-4050F
7	Remove paneling on B-pillar	Do not remove seatbelt end fitting	AR68.30-P-4700F
8	Remove paneling on C-pillar		AR68.30-P-4490FB
9	Unhook curtain on headliner	Unclip clips on left and right (for fastening curtain) from rail
10	Put seat backrests down
11	Move shift lever to rear
12	Remove clip (4) in dome lamp cutout
13	Remove headliner (1) through right front door
14	Reinstall in opposite order
