Removing and installing radiator - AR20.20-P-3865HW
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2000 Mercedes-Benz C43, 2000 Mercedes-Benz C280, 2000 Mercedes-Benz C230, 1999 Mercedes-Benz C43, and 1999 Mercedes-Benz C280. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 601 in MODEL 124, 201
ENGINE 602 in MODEL 124, 201
ENGINE 603 in MODEL 124, 126, 140

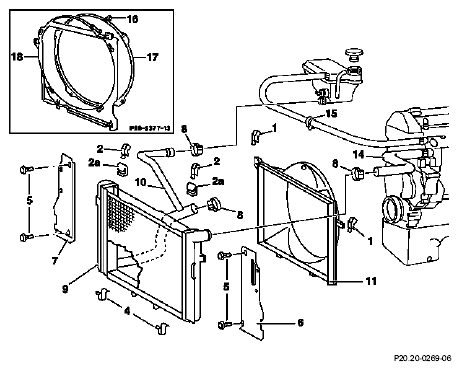

| Removing, installing | |||
|---|---|---|---|
| 1 | Remove bottom engine compartment panel | ||
| 2 | Drain coolant | ra20006010010x | |
| 3.1 | Unbolt oil lines at radiator, pinch off | Fig 2 | |
| 4 | Unclip holder (15) for vent hose | ||
| 5 | Pull out flat spring (1) | ||
| 6 | Take off fan shroud (11) and place over the fan | ||
| 7 | Detach coolant hoses (10, 14) | *WH58.30-Z-1001-06A | |
| *WH58.30-Z-1002-06A | |||
| 8 | Take out expanding rivets (5) | ||
| 9 | Remove radiator panel (6, 7) | ||
| 10 | Pull off retaining clip (4) | ||
| 11.1 | Unbolt front end crossmember | ||
| 12 | Detach hood cable | ||
| 13.1 | Take off front bumper | ||
| 14 | Unbolt condenser from radiator | ||
| 15 | Pull out flat spring (2) | ||
| 16 | Lift out radiator (9) | With new radiator ↓ |
|
| Align radiator to front end crossmember | AR20.20-P-3865-02A | ||
| 17 | Install in the reverse order | ||
| 18 | Inspect cooling system for leaks | AR20.00-P-1010HA |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-06A | 6 mm socket hexagon on flexible shaft for hose clamps with worm drive |
| WH58.30-Z-1002-06A | 7 mm socket hexagon on flexible shaft for hose clamps with worm drive |
