Remove fan shroud, install - AR20.40-P-6800V
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2000 Mercedes-Benz C43, 2000 Mercedes-Benz C280, 2000 Mercedes-Benz C230, 1999 Mercedes-Benz C43, and 1999 Mercedes-Benz C280. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250
ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254
ENGINE 113.982 in MODEL 463.243 /246
| Remove, Install | |||
|---|---|---|---|

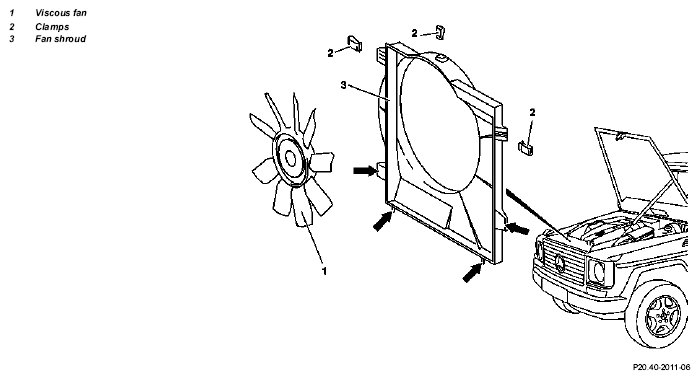

| 1 | Remove viscous fan (1) | AR20.40-P-5660C | |
| 2 | Remove clamps (2) | ||
| 3 | Remove the fan shroud (3). | The retainer tabs (arrows) of the fan shroud must be seated below and at the side in the mounts of the radiator |
|
| 4 | Install in the reverse order |
