Removing and installing rear seat belts - AR91.40-P-0681E

MODEL 202.01 /02 /12

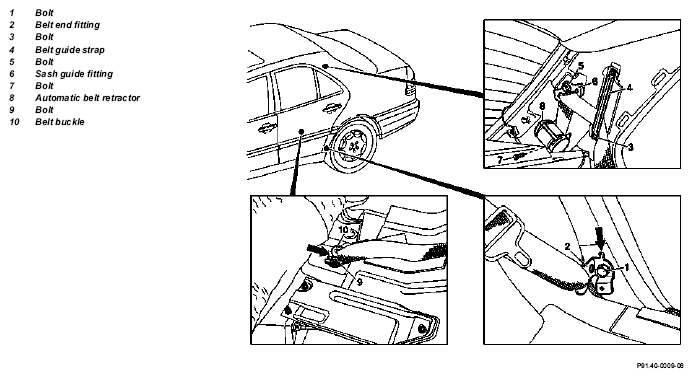

Fig 1: Identifying Rear Seat Belts Remove/Install Components - Model 202.01 /02 /12

	Removal, installation
1	Remove rear seat and rear backrest		AR91.12-P-1700E
2	Remove paneling on C-pillar		AR68.30-P-4490E
3	Unscrew bolt (3) on belt guide (4)
4	Unscrew bolt (5) on sash guide fitting (6)		*BA91.40-P-1005-01A  Figure
5	Unscrew bolt (7) on automatic belt retractor (8)	Installation:  Ensure that automatic belt retractor arrests	*BA91.40-P-1006-01A  Figure
6	Fold back insulating mat below rear seat
7	Unscrew bolt (9) on belt buckle (10)		*BA91.40-P-1007-01A
		Installation:  Ensure that belt buckle arrests (arrow)
			Figure
8	Unscrew bolt (1) on belt end fitting (2)		*BA91.40-P-1001-01A
		Installation:  Ensure that belt end fitting arrests (arrow)
			Figure
9	Reinstall in opposite order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1001-01A	Bolt on belt end fitting	Nm	35	35	35
BA91.40-P-1005-01A	Bolt on rear sash guide fitting	Nm	30	30	30
BA91.40-P-1006-01A	Bolt on rear automatic belt retractor	Nm	30	30	30
BA91.40-P-1007-01A	Bolt on rear belt buckle	Nm	30	30	30

Special tool

Fig 2: Identifying Torque Wrench (001 589 66 21 00)
