Removing and installing pressure supply reservoir for multi-contour backrest - AR91.25-P-1650E
MODEL 202 with CODE (404) orthopedic front seat backrest (multi-contour backrest on model 140) left with CODE (405) orthopedic front seat backrest (multi-contour backrest on model 140) right

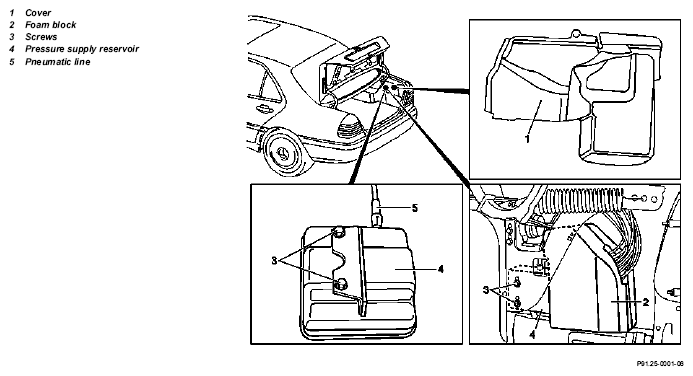

Fig 1: Identifying Pressure Supply Reservoir For Multi-Contour Backrest Remove/Install Components - Model 202
| Removal, installation | |||
| 1 | Remove cover (1) on right side in trunk | ||
| 2 | Pull foam block (2) out of trunk recess on right | ||
| 3 | Loosen screws (3) | ||
| 4 | Unhook pressure supply reservoir (4) from supporting brace | ||
| 5 | Pull pneumatic line (5) off of pressure supply reservoir (4) | ||
| 6 | Check pressure supply reservoir (4) for leakage | dh0302pa0os32x | |
| 7 | Reinstall in opposite order |
