Removing and installing control module and switches for left and right front heated seats - AR91.30-P-0001F
MODEL 210 with CODE (873) Left and right front heated seats
MODEL 202 as of 1 Sep 1995 with CODE (873) Left and right front heated seats

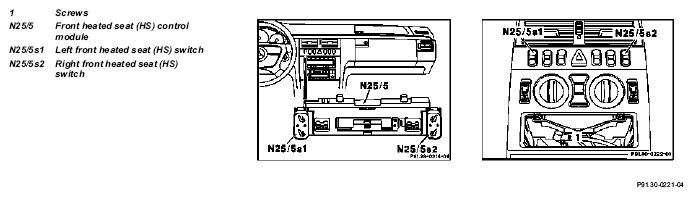

Fig 1: Identifying Control Module And Switches For Left And Right Front Heated Seats Components - Model 202, 210
| Removal, installation | |||
| 1 | Remove radio | AR82.60-P-7502EA | |
| 2 | Unscrew screws (1) | ||
| 3 | Remove cover | ||
| 4 | Disconnect connector | ||
| 5 | Unclip control module (N25/5) together with switch (N25/5s1, N25/5s2) from mount | ||
| 6 | Disconnect additional switch groups from control module (N25/5) | ||
| 7 | Reinstall in opposite order |
