Removing and installing catch for rear backrest lock - AR91.12-P-1731A

MODEL 202.07/08/18

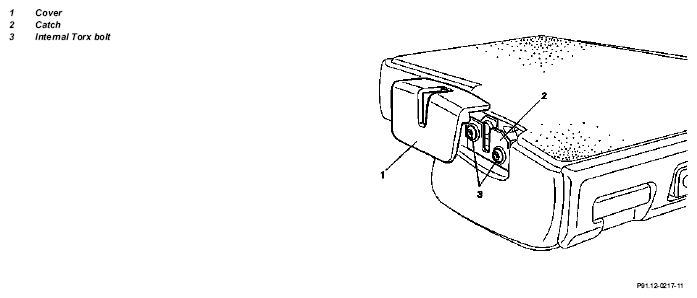

Fig 1: Identifying Catch For Rear Backrest Lock Remove/Install Components - Model 202.07/08/18

	Removal, installation
1	Release rear backrest and fold forward
2	Unclip cover (1)
3	Unscrew internal Torx screws (3)	Torx T40	Figure
4	Remove catch (2)
5	Unhook linkage	Installation:  Secure linkage
6	Reinstall in opposite order

Fig 2: Identifying Internal Torx Set (000 589 01 10 00)
