Ignition of removed emergency tensioning retractors - AR91.40-P-0611-02A

AR91.40-P-0611-02A	Ignition of removed emergency tensioning retractors
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Except model 202 up to 30.6.93 Store airbag unit with expulsion area on top, do not subject to temperatures above 100°C. Interrupt power supply when working on such units	AS91.00-Z-0001-01A
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Model 202 up to 30.6.93 Store airbag units with discharge opening facing upwards, do not subject to temperatures exceeding 100°C, interrupt any current supply to the units prior to working on them, and unplug test connector/plug connector from airbag (AB) with emergency tensioning retractor (X11/13)	AS91.00-Z-0001-01B
	Notes on controlled deployment of airbag, side-bag and emergency tensioning retractor units		AH91.60-P-0611-02P
	Notes on disposing of airbag and emergency tensioning retractor units	All models	OS91.00-P-0001-01A

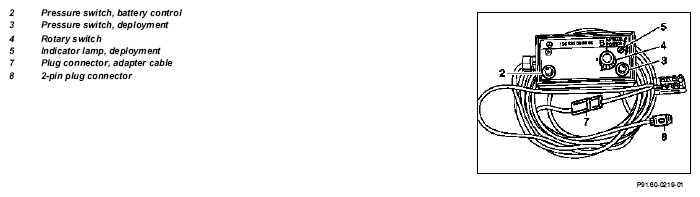

Fig 1: Identifying Pressure Switch, Rotary Switch, Indicator Lamp And Plug Connector

Using the deployment device

1. Plug the 2-pin plug connector (8) into the unit to be scrapped.
2. Dial the rotary switch (4) to position "1".
3. Press the battery control pressure switch (2) and deployment pressure switch (3) simultaneously.

   Keep a distance of 10 m for safety.

   After a successful deployment, the deployment indicator lamp (5) flashes.
