Replacing bulbs in push-button control module - AR83.25-P-1123EA

MODEL 202 as of 1.9.95, 208, 210 except CODE (581a) Air conditioning (automatic) Illustrated on model 202 with automatic heater (HEAT)

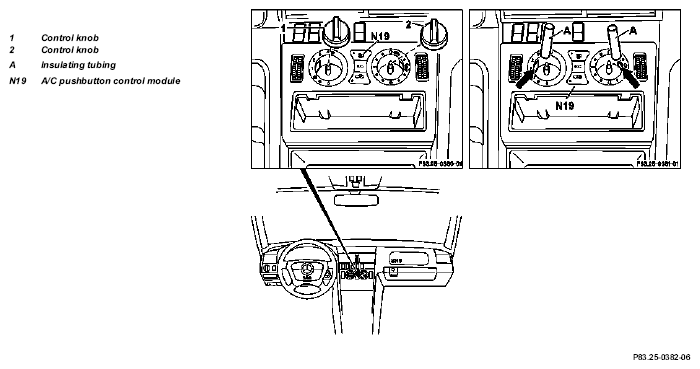

Fig 1: Identifying Control Knob, Insulating Tubing And A/C Push-button Control Module - Model 202 As Of 1.9.95, 208, 210 Except Code (581a)

	Removal, installation
1	Pull off control knobs (1, 2)
2	Press covers (arrows) to side and move to non-actuated position
3	Replace bulb	For this purpose slide a piece of insulating tubing (A, dia. 5 mm) over bulb and pull out.
4	Reinstall in opposite order
