Removing and installing temperature sensor - AR83.70-P-5975A

MODEL 210 as of 1.3.97 with ENGINE 602.982 with heater booster

MODEL 202 with ENGINE 611.960 with heater booster

Illustrated on model 210

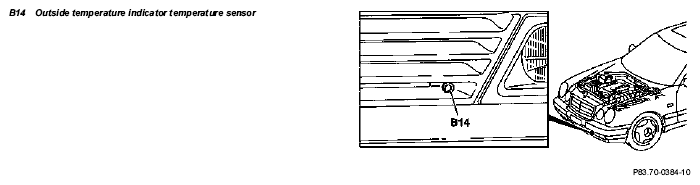

Fig 1: Identifying Temperature Sensor Remove/Install Components - Illustrated On Model 210

	Removal, installation
	Function description, electric ambient temperature display temperature sensor		GF54.30-P-4104A
1	Disconnect ground lead from battery	On model 210 insulate terminal on ground lead to protect against unintentional contact between disconnected ground lead and ground point W10	AR54.10-P-0003A
2.1	Open installation flap for left fog lamp (E5/1)	Model 210
2.2	Open installation flap on left bumper grille	Model 202
3	Disconnect electrical connector on outside temperature indicator temperature sensor (B14)
4	Unclip outside temperature indicator temperature sensor (B14) below front bumper
5	Reinstall in opposite order
