Removing and installing push-button control module for automatic heater or air conditioning (tempmatic) - AR83.25-P-1120EA
MODEL 202 up to 31.8.95 with recirculated air button

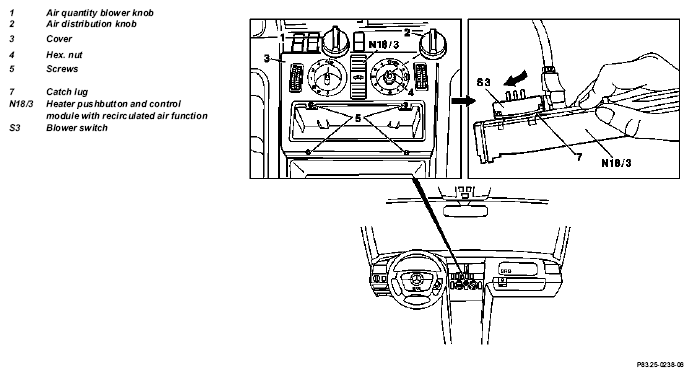

Fig 1: Identifying Heater Push-button And Control Module With Recirculated Air Function And Blower Switch - Model 202 Up To 31.8.95
| Removal, installation | |||
| 1.1 | Remove radio | Vehicles with radio | AR82.60-P-7502EA |
| 2 | Pull off control knobs (1 and 2) | ||
| 3 | Unscrew hex. nut (4) | ||
| 4 | Unscrew screws (5) | ||
| 5 | Remove cover (3) | ||
| 6 | Loosen push-button control module | ||
| 7 | Pull out push-button control module | ||
| 8 | Disconnect connector between push-button control module and blower switch | ||
| 9 | Remove blower switch (S3) | ||
| 10 | Pull out blower switch (S3) | ||
| 11 | Reinstall in opposite order |
