Removing and installing blower motor - AR83.25-P-1200G
MODEL 170, 202 as of 1.9.95, 208

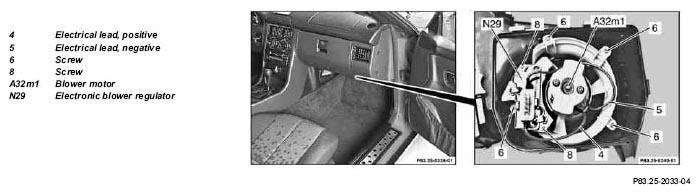

Illustrated in model 170
| Removal, installation | |||
| 1 | Remove electronic blower regulator (N29) | AR83.25-P-1220G | |
| 2 | Unscrew screws (6) | ||
| 3 | Remove blower motor (A32m1) | ||
| 4 | Install in opposite order |
