Removing and installing blower motor - AR83.25-P-1200E
MODEL 202 up to 31.8.95
| Removal, installation | |||
| 1 | Remove cover under right of instrument panel | Before installing cover under instrument panel, check function |
AR68.10-P-1520E |

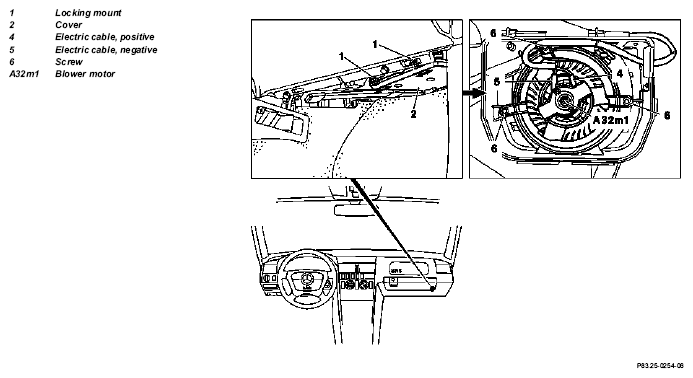

| 2 | Push locking mounts (1) to one side (arrows), fold cover (2) downwards | ||
| 3 | Disconnect electric cables (4 and 5) | ||
| 4 | Unscrew screws (6) | ||
| 5 | Remove blower (A32m1) | ||
| 6 | Reinstall in opposite order |
