Removal, installation and replacement of auxiliary coolant pump - AR83.25-P-1170E
MODEL 202
| Removal, installation and replacement | |||
| Risk of injury to skin and eyes due to scalding from hot coolant spraying out. Risk of poisoning from swallowing coolant | Only open cooling system at coolant temperatures below 90°C. Unscrew cap slowly and relieve pressure. Do not pour coolant into drinking containers. Wear safety gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| 1 | Drain off pressure in cooling system | ||
| 2 | Remove air cleaner | ||

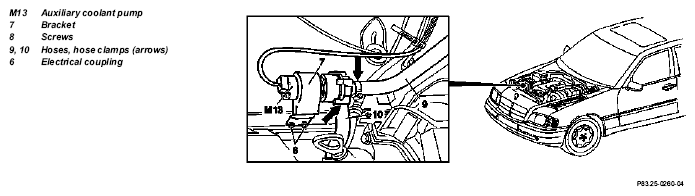

| 3 | Attach clamps to hot water hoses (9, 10) | ||
| 4 | Disconnect electrical coupling (6) on auxiliary coolant pump (M13) | ||
| 5 | Loosen hose clamps (arrows) on hot water hoses (9, 10) | ||
| 6 | Disconnect hot water hoses (9, 10) on auxiliary coolant pump (M13) | ||
| 7 | Unscrew screws (8) | ||
| 8 | Remove auxiliary coolant pump (M13) with bracket (7) | ||
| 9 | Disconnect bracket (7) from auxiliary coolant pump (M13) | ||
| 10 | Reinstall in opposite order | After the work is complete, replenish any coolant which has escaped and check for leaks |
