Removing and installing fuel tank filler neck - AR47.10-P-7541E
MODEL 202 up to 31.3.96
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel. Risk of injury as a result of fuel coming into contact with skin and eyes. | No fire, naked flame or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Hose clip | Pump out about 8 liters of fuel if fuel tank is full ↓ | ||
| Empty fuel tank, fill | AR47.10-P-4001E | ||

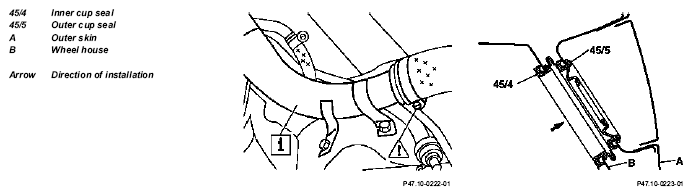

| Filler neck | Take out downward together with cup seals (45/4, 45/5), insert. Inspect connection, vent hose and cup seals to ensure they can be reused; replace if necessary. Installation note Insert filler neck, fit in inner cup seal and then outer cup seal (see Fig 1.). Ensure they are correctly located. |
