Connection diagram of evaporative emission control system - AR47.30-P-8212-01ED

Connection diagram Evaporative emission control system HFM-SFI Model 170 with engine 111 Model year 98 version USA ONLY

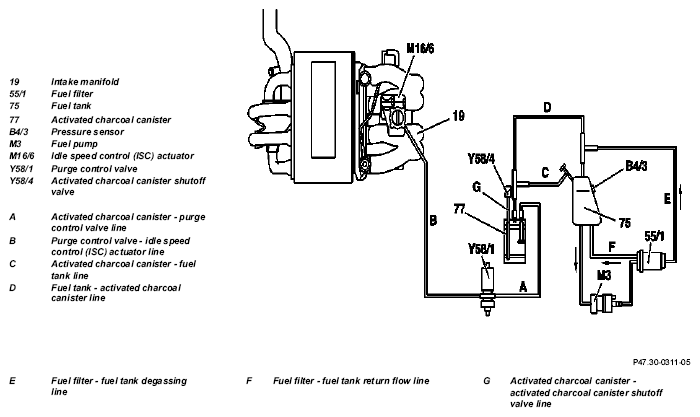

Fig 1: Connection Diagram Evaporative Emission Control System (HFM-SFI Model 170 With Engine 111 Model Year 98 Version)
G04715638
