Connection diagram of evaporative emission control system - AR47.30-P-8212-01EC

Connection diagram of evaporative emission control system model 129 with engine 119

Model Year 98 version USA ONLY

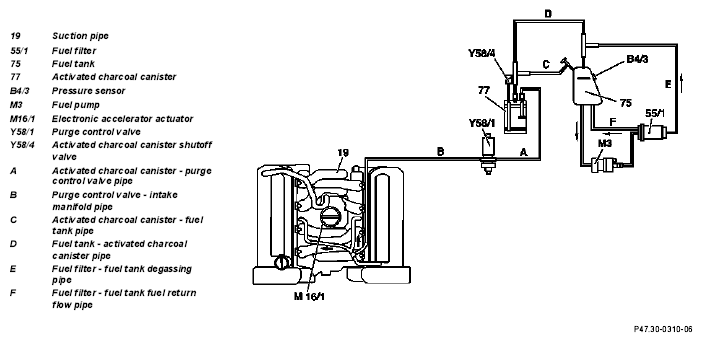

Fig 1: Connection Diagram Of Evaporative Emission Control System (Model Year 98 Version)
