Connection diagram of evaporative emission control system - AR47.30-P-8212-01DH

Connection diagram of evaporative emission control system engine 112 version USA ONLYas of 09/97

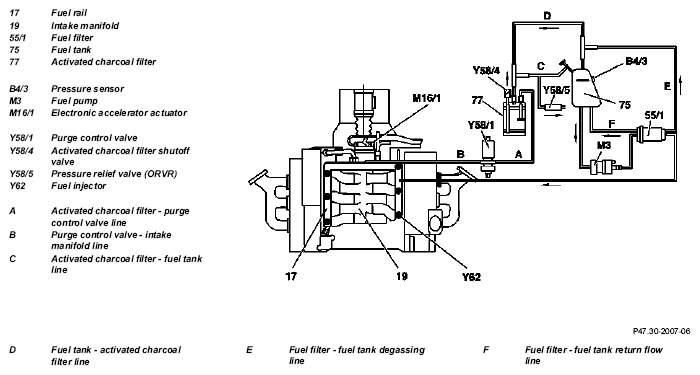

Fig 1: Connection Diagram Of Evaporative Emission Control System (Engine 112 Version As Of 09/97)
G04715633
