Connection diagram of evaporative emission control system - AR47.30-P-8212-01DG

Model 210 with engine 113

Connection diagram of evaporative emission control system model 113 version USA ONLY up to 09.97

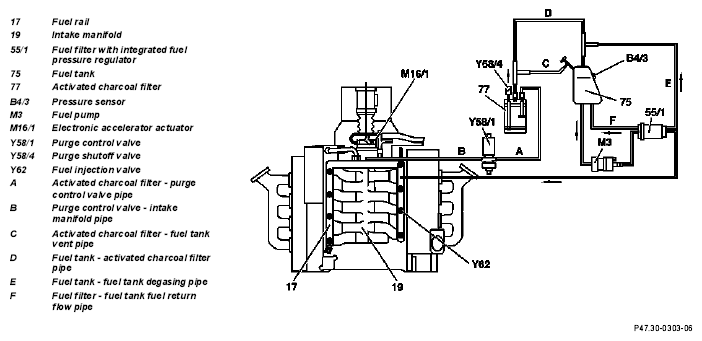

Fig 1: Connection Diagram Of Evaporative Emission Control System (Engine 113 Version Up To 09.97)
G04633199
