Connection diagram of evaporative emission control system - AR47.30-P-8212-01DF

Connection diagram evaporative emission control system engine 112 USA ONLY version up to 09/97

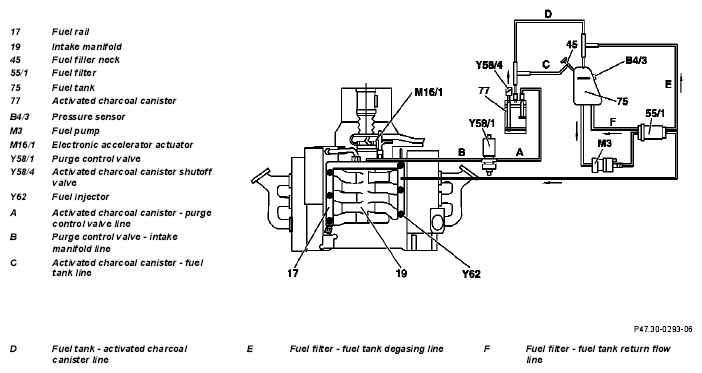

Fig 1: Connection Diagram Of Evaporative Emission Control System (Engine 112 Version Up To 09/97)
G04633198
