Remove contacts from sensor laminated contact plug - AR00.19-P-0120-01B

Fig 1: Identifying Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig 4: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig 5: Identifying SLK 2.8 Blade (220 589 01 99 62)

Secondary unlocking for version with contact retainer (SLK)

Using a suitable tool, push tabs of contact retainer (1) in direction of arrow out of locked position.

Shown on 2-pin SLK connector

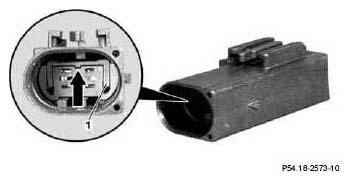

Fig 6: Identifying Contact Retainer

Unpin contact pins form connector (SLK)

Insert blade holder with clamping pliers and SLK 2.8 blade from front side through openings at contact cavity of connector (1).
Insert tool carefully to prevent damaging webs at openings of contact cavity.

This presses together the springs of the contact pin (2).
A slight tug on the corresponding cable will remove the contact pin from the connector.

Fig 7: Unpinning Contact Pins Form Connector (SLK)

Rocking the contact pin back and forth, thus making use of the full housing tolerance, may help to unpin the contact.
