Remove contacts from micro quadlock system plug - AR00.19-P-0120-03A

Secondary unlocking for version with retaining cap (MQS)

1. Press lock tab of cap (1) out of connector housing (2).
2. Detach cap (1) from connector housing (2) in direction of arrow while holding down catch tab.

Shown on 18-pin MQS connector

Secondary unlocking for version with 2nd contact retainer (MQS)

1. Open contact retainer using a suitable tool and lift in direction of arrow.

Shown on 6-pin MQS connector

Secondary unlocking for version with retaining cap (JPT)

1. Using a suitable tool, pry up the lock tab on the retaining cap (6).
2. Move retaining cap (6) in direction of arrow up to the stop.

   Illustrated on 4/8-pin JPT/MQS plug

   Fig 8: Prying Up The Lock Tab On The Retaining Cap - Illustrated On 4/8-Pin JPT/MQS Plug



Unpin contact pins form connector (MQS)

1. Mount blade holder with clamping pliers and MQS blade from above through the opening (arrow) in the exposed connector housing (1) at the spring shackle of the male contact (2).
2. Press down the spring shackle of the male contact (2) and push the male contact (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the removal procedure.

Shown with circular conductor

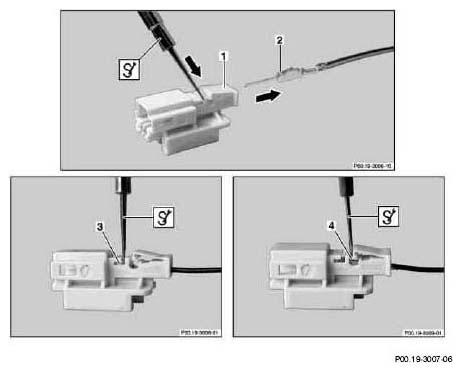

Unpin male contacts from plug with 2nd contact retainer (MQS)

1. Position the blade holder with clamping pliers and MQS blade from above through the opening (3) of pin housing (1) at the spring shackle of male contact (2).
2. Press down spring shackle and pull male contact (2) all the way out of contact cavity of pin housing (1). Carry out the same work step in the opening (4). Tug the corresponding cable at the same time to assist the unpinning procedure.

   Shown with circular conductor

   Fig 10: Unpinning Male Contacts From Plug With 2Nd Contact Retainer (MQS)
