Remove contacts from E 95 coupling - AR00.19-P-0120-05A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig 4: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig 5: Identifying E 95 Blade (220 589 01 99 55)

Secondary unlocking for version with tab (E 95)

Shown on 27-pin E 95 coupling

Fig 6: Identifying Secondary Unlocking For Version With Tab (E 95) - Shown On 27-Pin E 95 Coupling

Secondary unlocking for version with slider (E 95)

Using a suitable tool, move slider in direction of arrow into the pre-locking position (1).

Shown on 29-pin E 95 coupling

Fig 7: Identifying Secondary Unlocking For Version With Slider (E 95) - Shown On 29-Pin E 95 Coupling

Secondary unlocking for version with retainer (E 95)

Push retainer (1) in direction of arrow out of locked position using a suitable tool.
The seal may be damaged if the tool is inserted too.

Shown on 4-pin E 95 coupling

Fig 8: Identifying Secondary Unlocking For Version With Retainer (E 95) - Shown On 4-Pin E 95 Coupling

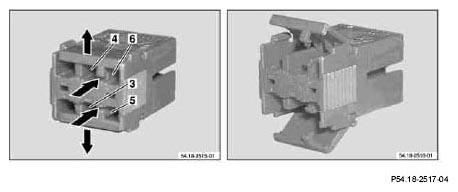

Secondary unlocking for version with contact retainer (E 95)

Press on tabs of contact retainer between contact cavities (3, 5 or 4, 6) using a suitable tool.
Open contact retainer.

Shown on 6-pin E 95 coupling

Fig 9: Identifying Secondary Unlocking For Version With Contact Retainer (E 95) - Shown On 6-Pin E 95 Coupling

Unpin female contacts from coupling (E 95)

Insert blade holder with clamping pliers and E 95 blade from front side through openings on contact cavity of coupling (2).
Insert tool carefully to prevent damaging webs between contact cavity and openings for release tool.

This pushes together the springs at the female contact (1).

Fig 10: Unpinning Female Contacts From Coupling (E 95)
A slight tug on the corresponding cable will remove the female contact (1) from the coupling (2).
