Remove/install rear window - AR67.20-P-2000E

MODELS 202.01 /02 /03 /12

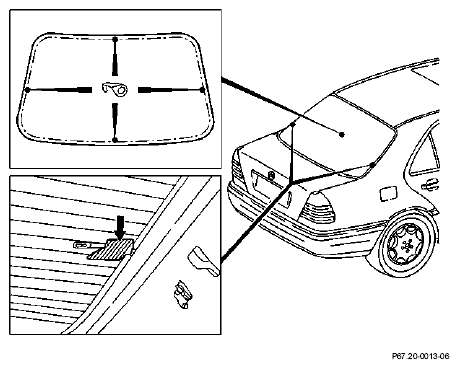

Fig 1: Identifying Rear Window Remove/Install Components - Models 202.01 /02 /03 /12

	Remove
1	Prepare glue cartridge		AR67.10-P-1000-07P
		Repair kit	*BR00.45-Z-1015-02A
2	Remove molding on rear window		AR67.20-P-2200E
3	Remove paneling from rear pillar		AR68.30-P-4490E
4	Remove electric connections from rear window and fasten with adhesive tape (arrow)
5	Remove rubber spacers		AR67.20-P-2000-01E
	Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out bonded windows	Always interrupt air supply when inserting or removing blade. Wear protective gloves and eye protection.	AS67.00-Z-0001-01A
6	Cut rear window out of with cutting blade		AR67.20-P-2000-02E
			Fig 2
			*WH58.30-Z-1003-20A
7	Remove window out of body opening with suction cups		*WE58.40-Z-1029-11A
	Install
8	Preparing body flange for installation of window		AR67.10-P-1501-01P
			Figure
			*WH58.30-Z-1003-20A
9	Replacing rubber spacers	Do not remove protective foil	AR67.20-P-2000-03E
10	Prepare window for installation		AR67.10-P-1000-03P
11	Line up rear window in the body opening		AR67.20-P-2000-04E
		Observe gap	*BE67.20-P-1001-01A
12	Remove protective foil from rubber spacers
13	Applying glue		AR67.10-P-1000-08P
		Betagun 2K electric cartridge gun Height of glue bead approx. 13 mm Install window within 10 minutes before adhesive force of glue starts to decrease	*WH58.30-Z-1002-20A
14	Installing rear window		AR67.20-P-2000-05D
		The curing time is approx. 1 hour from the time the rear window is installed Open a crank window of the vehicle to prevent the rear window from being pressed outward by air pressure when the door is closed.	*WE58.40-Z-1029-11A
15	Install molding on rear window		AR67.20-P-2200E
16	Complete electrical connections to rear window
17	Install paneling on rear pillar		AR68.30-P-4490E
