Removing and installing door liner on rear door - AR72.12-P-1010E

MODEL 202

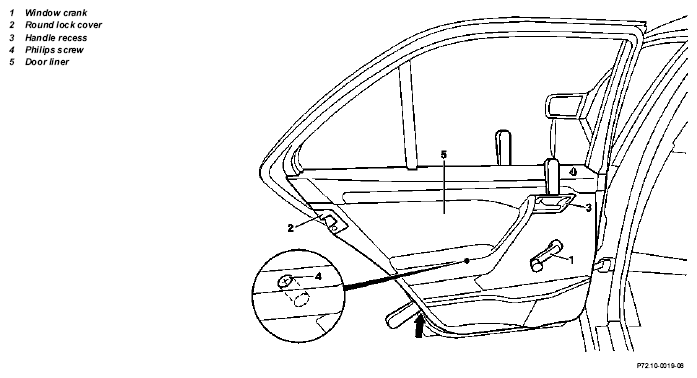

Fig 1: Identifying Door Liner On Rear Door Remove/Install Components - Model 202 (1 Of 3)

Fig 2: Identifying Door Liner On Rear Door Remove/Install Components - Model 202 (2 Of 3)

Fig 3: Identifying Door Liner On Rear Door Remove/Install Components - Model 202 (3 Of 3)

	Removal, installation
1	Open crank window	Rear door open
2	Remove window crank		AR72.10-P-1100GV
3	Unscrew screw on round lock cover (2) and remove round lock cover downward.
4	Press handle recess (3) off with installation wedge		Figure
5	Unscrew screw (6) in area of inner door actuation
6	Unscrew Phillips screw (4) on armrest
7	Press door liner (5) off of inner door panel at bottom, front and rear with installation wedge	Insert installation wedge directly next to each clip.	Figure
8	Lift door liner (5) at top on sealing rail up out of clips with installation wedge and simultaneously pull away from inner door panel		Figure
9	Open retainer (7) on linkage (8) for door interior actuating mechanism and detach linkage (8)
10	Disconnect electrical connections on door liner
11	Put down door liner
12	Check foil and clips on inner door panel	Replace damaged foil or clips. Rivet on support for armrest mount after installing foil. When replacing foil cut out this area and glue with overlap joint or seal with adhesive strap.
13	Check clips on door liner	Replace damaged clips
14	Install in reverse order

Special tool

Fig 4: Identifying Installation Wedge (110 589 03 59 00)
