Remove/install door lining on rear door - AR72.12-P-1010M

MODEL 220.026 /028 /063 /065 /070 /073 /074 /075 /128 /165 /170 /173 /174 /176 /179

MODEL 220.175 /178 except CODE (Z04) Light armoring except CODE (979) Special protection version

MODEL 220.875 /878 except CODE (P082) Electrically adjustable curtains

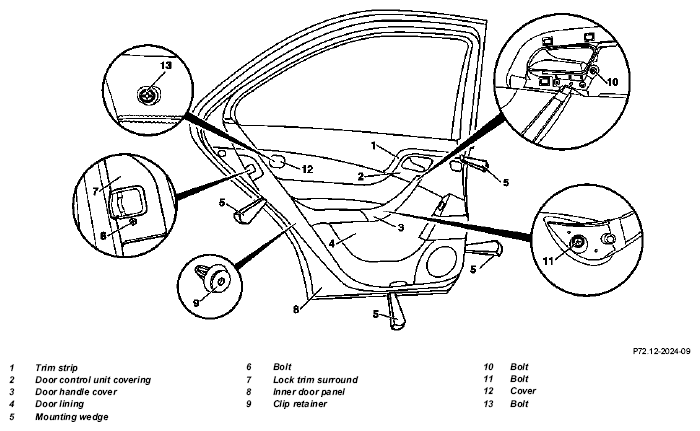

Fig 1: Identifying Door Liner On Rear Door Remove/Install Components - Model 220 (1 Of 3)

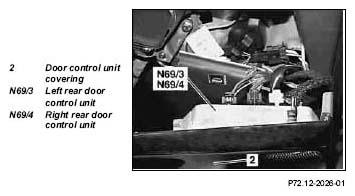

Fig 2: Identifying Door Liner On Rear Door Remove/Install Components - Model 220 (2 Of 3)

Fig 3: Identifying Door Liner On Rear Door Remove/Install Components - Model 220 (3 Of 3)

	Remove/Install
1	Press trim strip (1) off of door control module covering (2) with mounting wedges (5)	Mounting wedge	Figure
2	Remove door handle cover (3) from door handle
3	Unscrew bolts (15) and press door control module covering (2) out of door lining (4) with mounting wedges (5) and remove
4	Disconnect connectors from left rear door control module (N69/3) and right door control module (N69/4) and remove door control module covering (2)
5	Unscrew bolt (6) from lock cover plate (7) and remove lock trim surround (7)
6	Remove cover (12) and unscrew bolt (13)
7	Press door lining (4) off of inner door panel (8) with mounting wedges (5)	Move mounting wedges (5) directly to clip retainer (9) so that the retainer tab of the clip retainer do not tear out off the door lining.
8	Pry door lining (4) out of retaining clamps on at top of sealing rail with mounting wedges (5) and simultaneously remove from inner door panel.
9	Unhook control cable from inside door opener
10	Disconnect electrical connectors from door lining (4) and lay down door lining (4)
	Check
11	Check insulating mat and clip retainers (9)	Replace damaged insulating mat and clip retainers.
12	Install in the reverse order	Installation:  Remove clip retainers still on inner door panel (9) and install at corresponding point on door lining.

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)
