Remove/install door lining on front door - AR72.10-P-1000M
MODEL 220 except CODE (Z07) Top protection except CODE (Z04) Light armoring
Shown on model 220 up to VIN: 316716

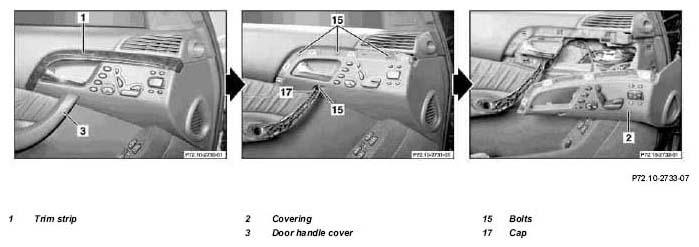

Fig 1: Identifying Lining On Front Door Remove/Install Components - Shown On Model 220 Up To Vin: 316716
Shown on model 220 up to VIN: 316716
Fig 2: Identifying Lining On Front Door Remove/Install Components - Shown On Model 220 Up To Vin: 316716
Shown on model 220 As of VIN: 316717

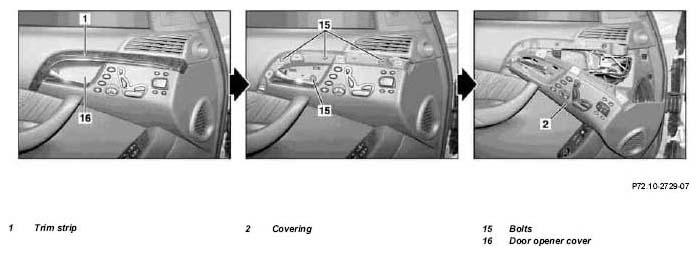

Fig 3: Identifying Lining On Front Door Remove/Install Components - Shown On Model 220 As Of Vin: 316717
Shown on model 220 up to VIN: 316716

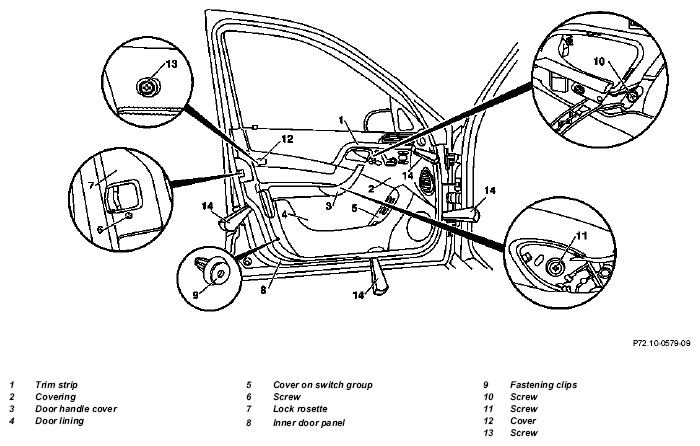

Fig 4: Identifying Lining On Front Door Remove/Install Components - Shown On Model 220 Up To Vin: 316716
| Remove/Install | |||
| 1 | Press trim strip (1) out of covering (2) | Figure | |
| 2.1 | Remove door handle cover (3) from door handle | Up to VIN :316716 | |
| 2.2 | Remove door opener cover (16) | As of VIN: 316717 | |
| 3.1 | Unclip cap (17) | Up to VIN :316716 | |
| 4 | Remove screws (15) | ||
| 5 | Press covering (2) off of door lining (2) | Figure | |

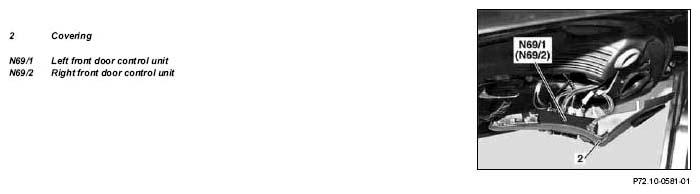

| 6 | Disconnect electrical connector from left front door control unit (N69/1) and right front door control unit (N69/2) | ||
| 7 | Unclip cover on switch group (5) with switch group from door lining (4) | ||
| 8 | Unscrew bolt (6) from round cover plate (7) | ||
| 9 | Unscrew bolts (10, 11) from inner door handle | ||
| 10 | Remove screw (13) | ||
| 11 | Press door lining (4) off of inner door panel (8) | ||
| Figure | |||
| 12 | Lift door lining (4) at top on sealing rail out of retaining clips and simultaneously pull away from inner door panel (8) | ||
| Figure | |||
| 13 | Unhook Bowden cable from inside door opener | ||
| 14 | Disconnect electrical connectors from door lining (4) and lay down door lining (4) | ||
| 15 | Check door foil and fastening clips (9) | ||
| 16 | Install in the reverse order |
