Removing cover - AR77.20-P-0500-01EB

Electrically operated glass tilting/sliding roof (code 414a)

1. Slide cover (2) toward rear.
2. Move tilting/sliding roof to tilted position.
3. Unhook rail from rubber bellows (5) on slider (arrow) and lay rail down on slider (arrow).
4. Open tilting/sliding roof.

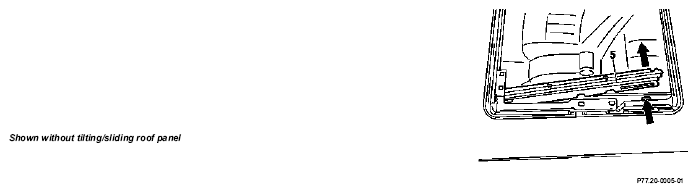

   Fig 1: Removing Rail From Rubber Bellows On Slider


5. Pull cover (2) out in direction of arrow.
   Fig 2: Pulling Cover Out
