Installing tilting bracket - AR77.20-P-1700-03E

Repair materials

Number	Designation	Order number
BR00.45-Z-1004-06A	Lubricant	A 001 989 46 51

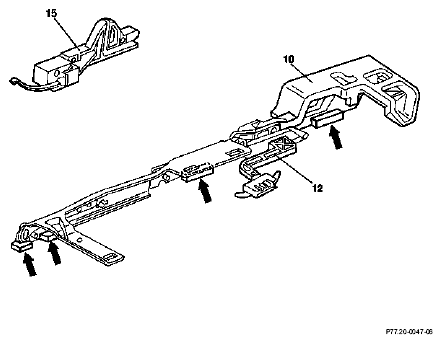

1. Lubricate sliders (arrows), roller on tilting lever (12) as well as tilting mechanism for sliding/pop-up roof cover on tilting bracket (10) with MB lubrication paste.
   NOTE: Use moderate quantity of lubrication paste. Ensure that sliders (arrows) are properly seated before installing tilting bracket (10).
   Fig 1: Locating Tilting Bracket Sliders & Tilting Lever

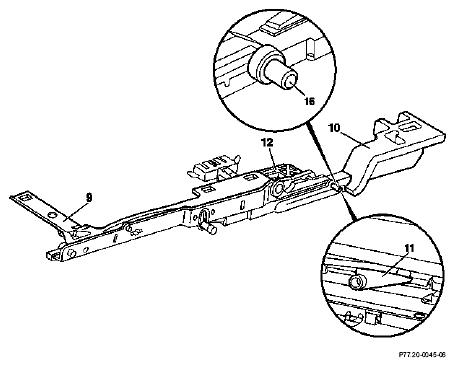

2. Position pull cable (11) on bolt (16) on tilting bracket (10).
3. Install tilting bracket (10) in sliding/pop-up roof frame and push toward rear.
4. Close cover (8), screw in screw (7).
5. Install slide rail (6)
6. Push tilting bracket (10) toward front and install water drain trough (4).
   Fig 2: Identifying Sliding/Pop-Up Roof Frame Components


7. Align tilting bracket (10) so that mark (arrow) on tilting lever (12) and slider (13) coincides with mark (arrow) on slide rail (6).

NOTE: Markings (arrows) must coincide in order to install sliding roof drive (3).

Fig 3: Align Tilting Bracket On Tilting Lever And Slider (1 Of 2)

Fig 4: Align Tilting Bracket On Tilting Lever And Slider (2 Of 2)
