Adjusting tilting/sliding roof panel - AR77.20-P-1100E
MODEL 202 with CODE (412b) Electrically operated tilting/sliding roof with CODE (414a) Electrically operated glass tilting/sliding roof
| Removal, installation | |||
|---|---|---|---|

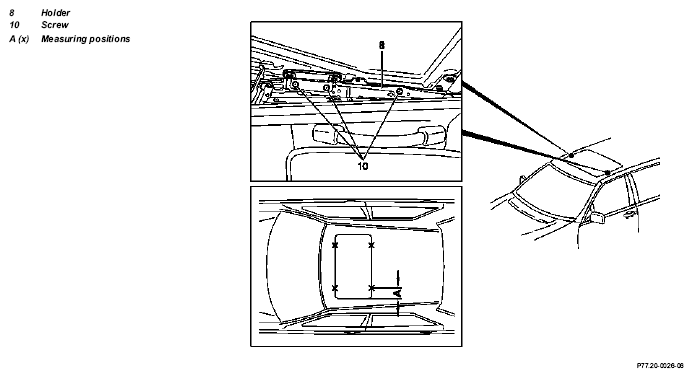

| 1 | Remove cover on tilting/sliding roof | On steel tilting/sliding roof (code 412b) On the glass tilting/sliding roof (code 414a) it is only necessary to unhook the rubber bellows on the tilting/sliding roof panel in order to reach the screw (10). | AR77.20-P-0500E |
| Adjustment | |||
| 2 | Loosen screw (10) | ||
| 3 | Adjust tilting/sliding roof panel | *BE77.20-P-1002-01A | |
| 4 | Reinstall in opposite order |
TEST AND ADJUSTMENT VALUES FOR SLIDING ROOF
| Number | Designation | Model 202 | ||
|---|---|---|---|---|
| BE77.20-P-1002-01A | Height adjustment | Measuring position "A" (X) | mm | 140 |
| front: lower than roof panel | mm | 0-1 | ||
| rear: higher than roof panel | mm | 0-1 | ||
