Removing and installing remote trunk release switch - AR88.50-P-5040F
MODEL 202 (except 202.07 /08 /18) as of 1.6.97, 210 (except 210.2) as of 1.3.97

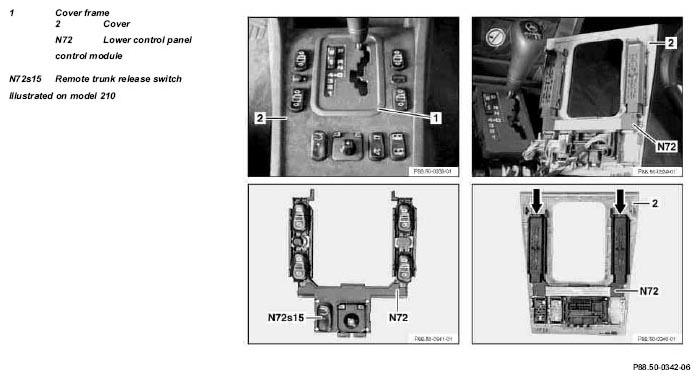

Fig 1: Identifying Remote Trunk Release Switch Components - Model 202 (Except 202.07 /08 /18) As Of 1.6.97, 210 (Except 210.2) As Of 1.3.97
| Removal, installation | |||
| 1 | Unclip cover frame (1) | ||
| 2 | Release cover (2) and remove | ||
| 3 | Disconnect electrical connectors | ||
| 4 | Unclip lower control panel control module (N72), for this purpose press bow in direction of arrow | ||
| 5 | Reinstall in opposite order |
