Removing and installing rear bumper - AR88.20-P-2200E

MODEL 202

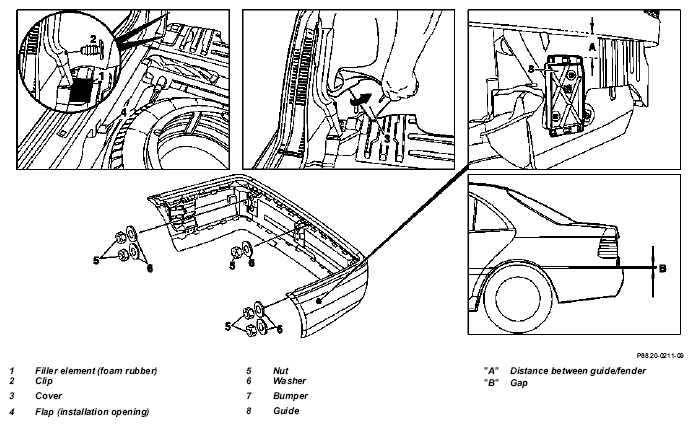

Fig 1: Identifying Rear Bumper Remove/Install Components - Model 202

	Removal, installation
1	Open trunk lid
2	Remove filler element (1)
3	Remove clip (2)
4	Pull cover (3) on side out below center cover
5	Open flap (4)
6	Unscrew nuts (5) and remove washers (6)		*BA88.20-P-1002-01A
7	Remove bumper (7)	When removing bumper pull outward slightly at wheelhouse
		Installation:  Check gap dimension "B" ↓ if necessary adjust by correcting guide (basic adjustment dimension "A" = 53 mm)	*BE88.20-P-1002-01A
8.1	Transfer AMG bumper	See accessory installation instructions ↓
		Retrofitting AMG paneling sections	AZ88.00-P-0001A
9	Reinstall in opposite order

GAP DIMENSIONS FOR BUMPER

Number	Designation			Model 202
BE88.20-P-1002-01A	Dimension	Rear bumper, gap dimension "B"	mm	6
		See figure		AR88.20-P-2200E

BUMPER

Number	Designation		Model 202
BA88.20-P-1002-01A	Nuts for rear bumper on rear center piece	Nm	20
