Removing and installing inner fender in rear fender - AR88.10-P-1400E

MODEL 202

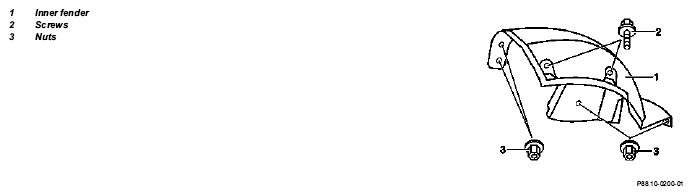

Fig 1: Identifying Inner Fender Components (Rear Fender) - Model 202

	Removal, installation
1	Jack up vehicle
2	Remove wheel
3	Unscrew screws (2)
4	Screw off nuts (3)
5	Remove inner fender (1)	Diesel vehicles equipped with level control as special equipment only have one inner fender in the left rear fender
6	Reinstall in opposite order
