Removing and installing inner fender in front fender - AR88.10-P-1300E

MODEL 202

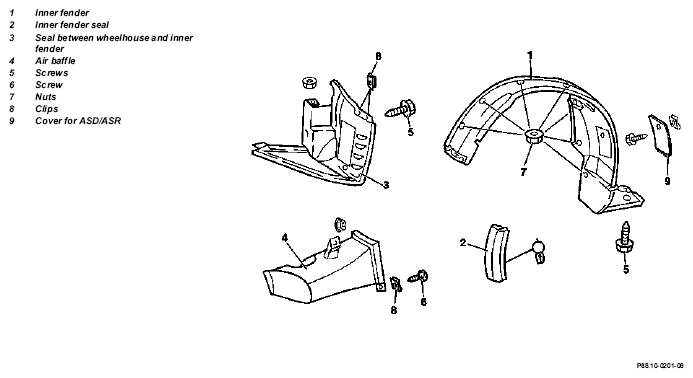

Fig 1: Identifying Inner Fender Components (Front Fender) - Model 202

	Removal, installation
1	Jack up vehicle
2	Remove wheel
3	Unscrew screws (5 and 6)
4	Screw off nuts (7)
5	Remove inner fender (1)	When installing ensure that seal is seated correctly
6	Reinstall in opposite order
