Removing |
|
|
| 1 |
Remove trunk lid |
|
AR88.50-P-5000E |
| 2 |
Remove rear seat and rear backrest |
|
AR91.12-P-1700E |
| 3 |
Remove rear head restraint |
|
AR91.16-P-1770E |
| 4 |
Remove paneling on C-pillar |
|
AR68.30-P-4490E |
| 5 |
Remove rear shelf |
|
AR68.30-P-4580E |
| 6 |
Remove luggage compartment paneling |
|
|
| 7 |

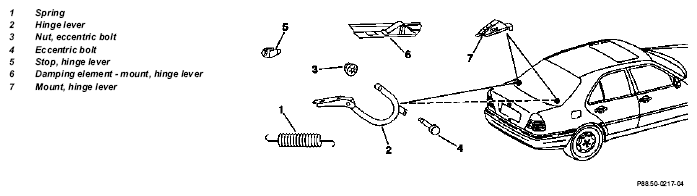

Remove spring (1) on hinge lever (2) |
|
|
| 8 |
Remove damping element (6) for mount (7) |
|
|
| 9 |
Unscrew nut (3) |
|
|
| 10 |
Pull out eccentric bolt (4) and remove hinge lever (2) |
|
|
 |
Installation |
|
|
| 11 |
Position hinge lever (2) and insert eccentric bolt (4) |
The installation position of the trunk lid can also be adjusted in the vertical and longitudinal directions with the eccentric bolt |
|
| 12 |
Screw in nut (3) |
|
|
| 13 |
Install spring (1) on hinge lever (2) |
|
|
| 14 |
Install trunk lid |
|
AR88.50-P-5000E |
| 15 |
Check trunk lid fit |
if necessary ↓ |
|
| |
|
adjust |
AR88.50-P-5200E |
| 16 |
Tighten nut (3) |
 |
*BA88.50-P-1003-01A |
| 17 |
Insert damping element (6) |
|
|
| 18 |
Install rear shelf |
|
AR68.30-P-4580E |
| 19 |
Install paneling on C-pillar |
|
AR68.30-P-4490E |
| 20 |
Install rear head restraint |
|
AR91.16-P-1770E |
| 21 |
Install rear seat and rear backrest |
|
AR91.12-P-1700E |
| 22 |
Install luggage compartment paneling |
|
|
| 23 |
Close trunk lid and check for proper functioning |
|
|
