Removing and installing drive for mirror adjustment - AR88.70-P-9060E
MODEL 202
| Removal, installation | |||
| 1 | Remove covering on exterior mirror | AR88.70-P-9040E | |
| 2 | Remove mirror glass | AR88.70-P-9020E | |

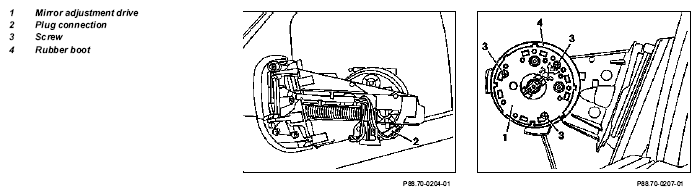

| 3 | Disconnect plug connection (2) | ||
| 4 | Unscrew screw (3) | ||
| 5 | Remove drive (1) for mirror adjustment | ||
| 6 | Reinstall in opposite order |
