Completely removing and installing exterior mirror - AR88.70-P-9000E
MODEL 202, 210
| Removal, installation | |||

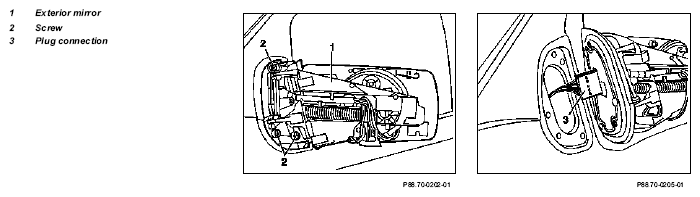

| 1 | Remove covering on exterior mirror | AR88.70-P-9040E | |
| 2 | Unscrew screw (2) | ||
| 3 | Disconnect connector (3) | ||
| 4 | Remove exterior mirror | ||
| 5 | Reinstall in opposite order |
