Deflector for retaining hook with additional installation hook modified - BT88.40-P-0001-01A

Model 202

MODEL 202

MODIFICATION NOTES

21.10.99

Replaces SI 88/35 dated 21.4.94

Remove SI 88/35 from your file.

With the use of the deflector part no. 202 887 02 45 the first deflector version part no.. 202 887 00 45 and second version part no. 202 887 01 45 are no longer available as replacement parts.

First version

As of start of production up to approx. 10/93

Deflector (A), part no. 202 887 00 45 hooked in at upper frame cross member (arrow) and clipped in.

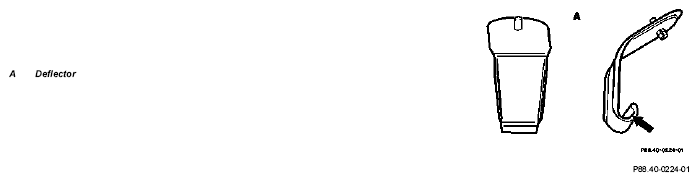

Fig 1: Identifying Deflector (First Version)

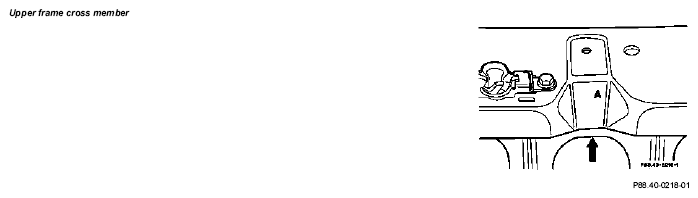

Fig 2: Locating Upper Frame Cross Member (First Version)

Second version

From 11/93 up to approx. 01/94

Deflector (B) part no. 202 887 01 45 clipped in at upper frame cross member and fastened with sheet metal screw (arrow).

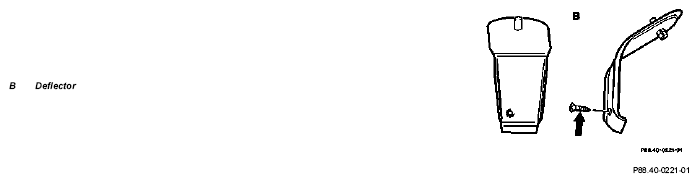

Fig 3: Identifying Deflector (Second Version)

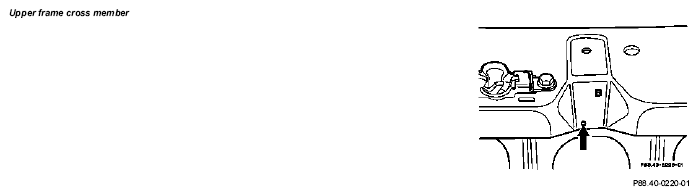

Fig 4: Locating Upper Frame Cross Member (Second Version)

3rd version

Since approx. 02/94

Deflector (C), part no.. 202 887 02 45 with additional assembly hook (arrow) hooked on and clipped into rectangular hole on upper frame cross member (arrow).

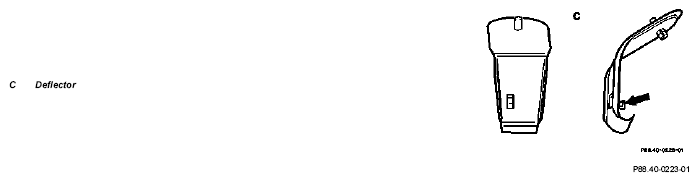

Fig 5: Identifying Deflector (3rd Version)

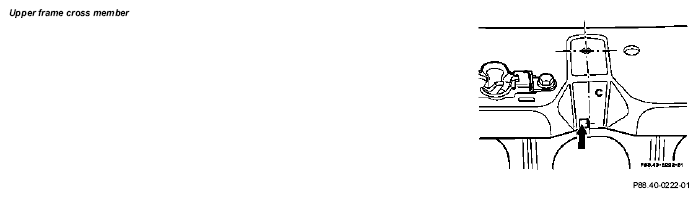

Fig 6: Locating Upper Frame Cross Member (3rd Version)
