Removing and installing infrared remote central locking function indicator for front door - AR80.30-P-4310A
MODEL 202 as of 1.12.94 up to 31.7.96 except CODE (491)
MODEL 210 up to 31.5.96

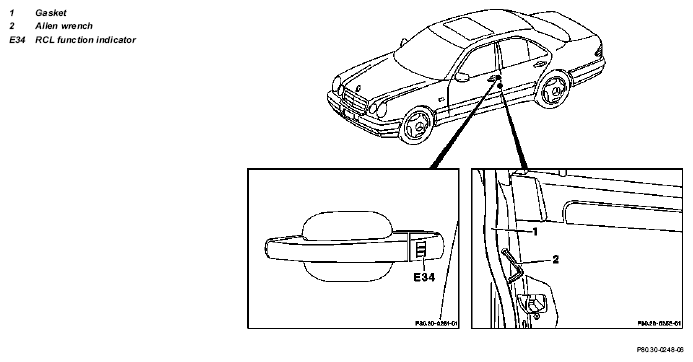

Shown on model 210
| Removal, installation | |||
| 1 | Pull gasket (1) in area of door lock out of guide | ||
| 2 | Remove fastening screw for function indicator (E34) with 4 mm Allen wrench (2) | ||
| 3 | Pull off function indicator (E34) | ||
| 4 | Reinstall in opposite order |
