Removing and installing infrared motion sensor control unit - AR80.50-P-9841EA
MODEL 202 with CODE (882a) interior motion sensor (infrared)
| Removal, installation | |||
|---|---|---|---|

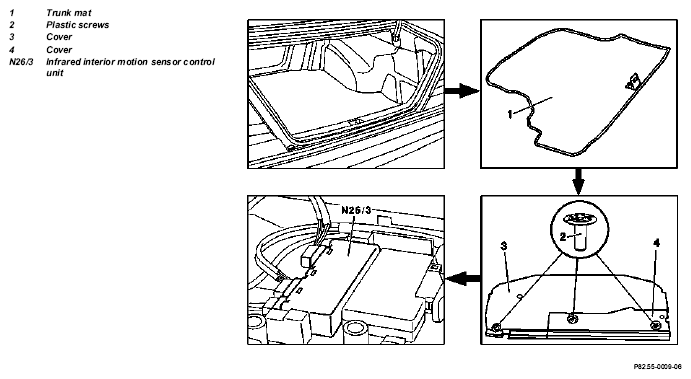

| 1 | Open trunk lid | ||
| 2 | Take out trunk mat (1) | ||
| 3 | Disconnect ground cable at the battery | AR54.10-P-0003A | |
| 4 | Remove plastic screws (2) | ||
| 5 | Take cover (3 and 4) out of the trunk | ||
| 6 | Unplug connector at control unit (N26/3) | ||
| 7 | Press down catches at control unit (N26/3) and take out control unit (N26/3) | ||
| 8 | Install in the reverse order | ||
| Perform operational check | dh1303pa20411x Diagnosis Manual Body 13.3 □ 11/1 |
||
| Read fault memory and erase | dh0000pa10003x Diagnosis Manual Body 0 □ 3/1 |
