Removing and installing front door CL actuator - AR80.20-P-2160E
MODEL 202, 210
| Removal, installation | |||
| 1 | Removing and installing door lock on front door | Model 202 | AR72.10-P-4011E |
| Model 210 | AR72.10-P-4011F | ||

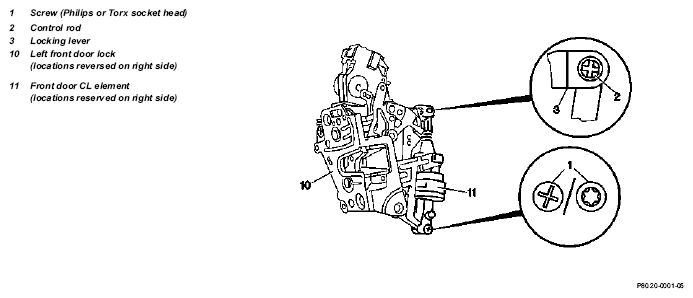

| 2 | Screw out screw (1) | ||
| 3 | Unclip control rod (2) from locking lever (3) | ||
| 4 | Unhook element (11) on door lock (10) | ||
| 5 | Check pneumatic function of element (11) | Model 202 | dh0302pa0zv32x |
| Model 210 | dh0303pa0zv32x | ||
| 6 | Reinstall in opposite order |
