Removing and installing electronic ignition switch control module - AR80.57-P-1000F

MODEL 202 as of 1.6.97, 210 as of 1.3.97

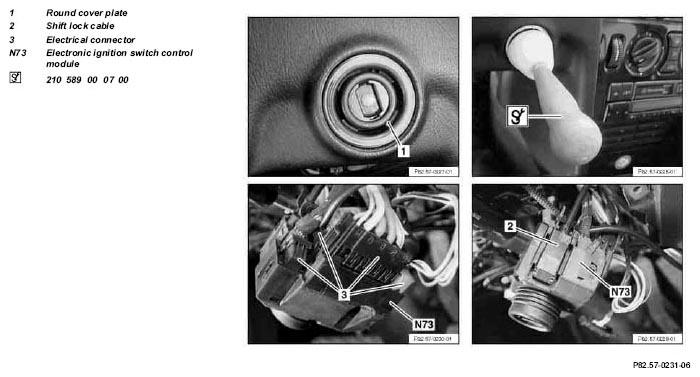

Fig 1: Identifying Electronic Ignition Switch Control Module Components

	Removal, installation
1	Remove cover below instrument panel on left	Model 202	AR68.10-P-1500E
		Model 210	AR68.10-P-1500F
2	Remove electric steering lock	only model 210	AR46.10-P-0910A
3	Unscrew round cover plate (1) with special tool		Fig 2
4	Pull electronic ignition switch (N73) toward rear out of protective cushion	Installation:  Reattach spacer sleeve to electronic ignition switch (N73)
5	Remove shift lock control cable (2) from electronic ignition switch (N73)	only with automatic transmission
6	Disconnect electrical connectors (3) from electronic ignition switch (N73)	some with installation and removal aid
7	Reinstall in opposite order	Installation:  When replacing the electronic ignition switch (N73) program switch according to programming instructions included with programming station

Fig 2: Identifying Slotted Nut Wrench For Round Cover Plate On Ignition Switch (210 589 00 07 00)
